1.5 Inch Bushing Replacement for Four Motor Mounts

AWR Racing

(No reviews yet) Write a Review
$84.99
SKU:
AWR-2000-4
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

Product Overview

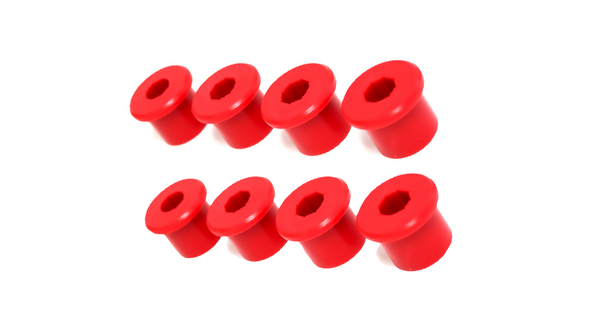

This kit comes with eight replacement bushings to fit in four engine mounts.

These bushings are the 1.5 inch barrel style which are red in color. AWR's replacement Energy Suspension polyurethane bushings are for AWR's fabricated motor mounts. Motor mount bushings are available in three durometer specifications. 2 bushings are required per motor mount, this specific kit provides eight replacement bushings to complete replacements on 4 mounts.

70 durometer is recommended for daily driving with little to no mods. 70 - 88 durometer is recommended for lightly to intermediate modification levels. 88 - 95 durometer is recommended for highly modified street and track builds.

  • 70 durometer (soft)

  • 88 durometer (medium)

  • 95 durometer (hard)

Please specify which mounts these bushings are for. Some may need a slight trim and we would prefer to do that service here at no charge!

Have any questions? Email ali@awrracing.com or use our live chat located on our website!

Fixed shipping applies to orders within the United States.



How to swap bushings:
1. This process is best performed in a bench vise. Drive the center steel sleeve out with a punch and rubber mallet.
2. Insert flat blade screwdriver into urethane bushing and line up where the two bushings meet in the middle. Drive out one side of the bushing. Once one side is complete, drive out the remaining side.
3. Insert new bushings by hand as far as they will go. Pinch in vise to set against the barrel. Insert opposite side and repeat.
4. Insert metal sleeve  and pinch in vise or use a rubber mallet to seat. Do not hit the sleeve with a steel hammer!
