Product Overview

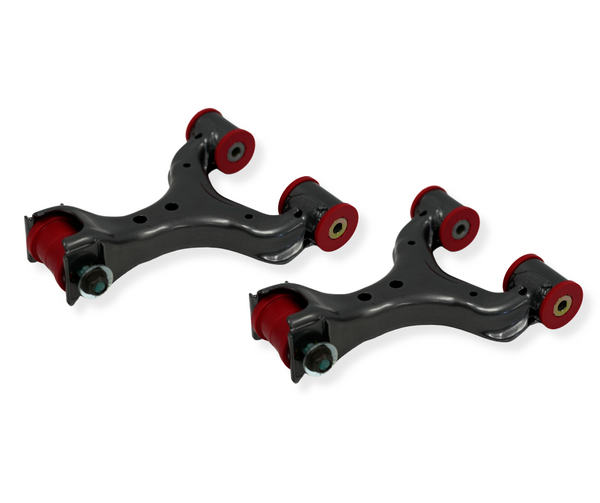

AWR Racing's modified Miata rear upper control arms (sold as a pair) are designed to allow for camber adjustments. You can opt for increased positive camber when using slicks, or select control arms that enhance negative camber. In the options section, specify your preference for positive or negative camber, and we will customize the kit according to your request. If you're aiming for balanced camber, we can make the arms adjustable for an equal amount of positive and negative camber to meet your build specifications.
This kit includes a pair of bare arms, modified in-house by AWR Racing to accommodate adjustable Mazda cam bolts. They are powder-coated in gunmetal gray and come with two sets of eccentric cam bolts.
If you prefer to send your OEM control arms to us, there will be no core charge added to your order total. You can send them to:
AWR Racing
1280 Liberty Way, Suite A
Vista, CA 92081
The processing will begin once we receive the core control arms, so please allow 14 business days for completion. Should you want us to source bare arms, please factor in an additional 7-10 business days on top of the 14-day timeline. We will notify you after your order is placed regarding the availability of any OEM arms in stock to expedite the process.
Upper Outer Bushing - 2 Required Per Set:
Since the provided cam bolt is a larger diameter than the OEM bolt for this position, you will need to purchase replacements either from Mazda or AWR. We recommend using Energy Suspension bushings with this kit. We will slightly modify the bushings in-house prior to shipment to ensure easy installation. If you prefer OEM bushings, the correct Mazda part number is #NA01-34-490, which has the specific bore for the eccentric cam bolt. If you wish to purchase bushings through AWR, please select the items in our product options above. Thank you!
Upper Inner Bushing -
Once the process is underway, we remove all bushings from the control arms and place each arm in a fixture to check for alignment. During this stage, all existing bushings are taken off and will need to be replaced. For Mazda upper inner bushing replacements, the correct OEM part number is #NA01-28-8C0C, available through Mazda or AWR. If you would like to use Energy Suspension bushings, please choose that option, and we will include them with the completed units.
If you have any questions, feel free to reach out to info@awrracing.com, and our team will respond promptly.
